Room Aware Families Revit

On the properties palette select the room calculation point parameter in the other section.

Room aware families revit. When a room schedule does not reflect the correct room for an element modify the element family to make it room aware. Instructor we re in a new revit project now called revitproject ra which stands for room aware and then underscore families rvt as usual you can download it from the website and use it as your exercise file now we re in a small building floor plan level zero and we ve got three rooms defined and three doors defined now the rooms are defined and what that means is. Select the family instance in the drawing area. We are testing revit for a masterplanning exercise and we have generic families representing different house types and rooms representing plots on site.

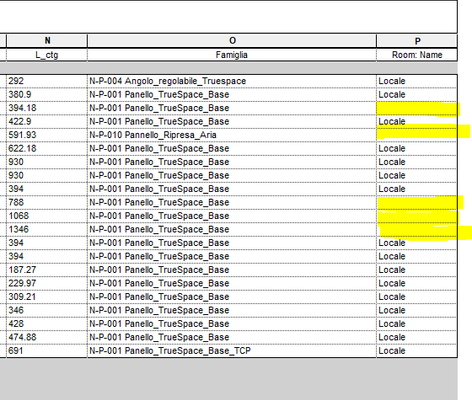

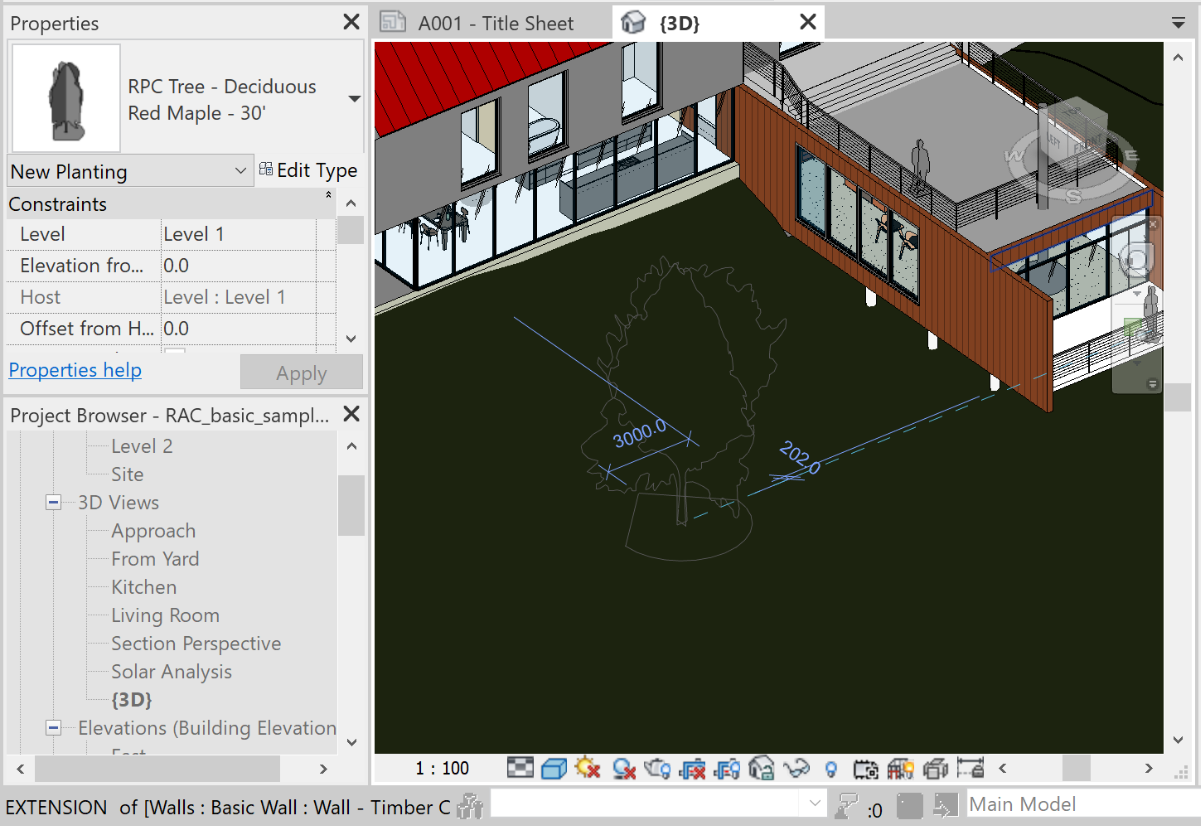

When families such as furniture doors windows casework specialty equipment and generic models are placed in a project sometimes parts. When i place it in the model the schedule i created recognizes it but doesn t fill out room name number however it does on other families i ve placed in it. Click modify tab mode panel edit family. It has three vertical reference planes and three horizontal reference planes and is just a box that is recessed into the wall.

There are a few circumstances in which a family instance does not report its room correctly. I have a room aware family generic model that sits inside a room to read all the information that room provides to inform the location of my family. In most instances families placed within a room are associated with the room in a schedule. The point is now visible in the drawing area as.

In this video ron palma application specialist with ideate describes how the revit 2014 room aware families now include the capability of recognizing roo. However this can be altered by enabling a customisable room location point. There are a few circumstances in which a family instance does not report its room correctly. A common issue when creating a schedule in revit is that the software sometimes does not show the desired room or space for an element.

Improve space and zone calculations as a foundation for energy analysis by placing a family calculation point inside a space to help ensure that the family is included in the calculation data. To make a family room aware and adjust its room orientation enable and move the room calculation point. In most instances families placed within a room are associated with the room in a schedule. Welcome to the revit forum.

It is not wall based. I made a paper towel family.
